730-OB1
This option for Model 730 or 730IS allows you to collect octave band data for the measured noise exposure.
Expert Choice: SpartanKey Product Features
Product Option: 730-OB1
31.25, 62.5, 125, 250, 500, 1000, 2000, 4000, and 8000 Hz
IEC 61260-1:2014/Part 1
1/1 Octave Bands
32,000 samples per second
Z Frequency Weighting
Max & Min Level Spectrum
Atlas App
G4 Software
Live Bar Chart

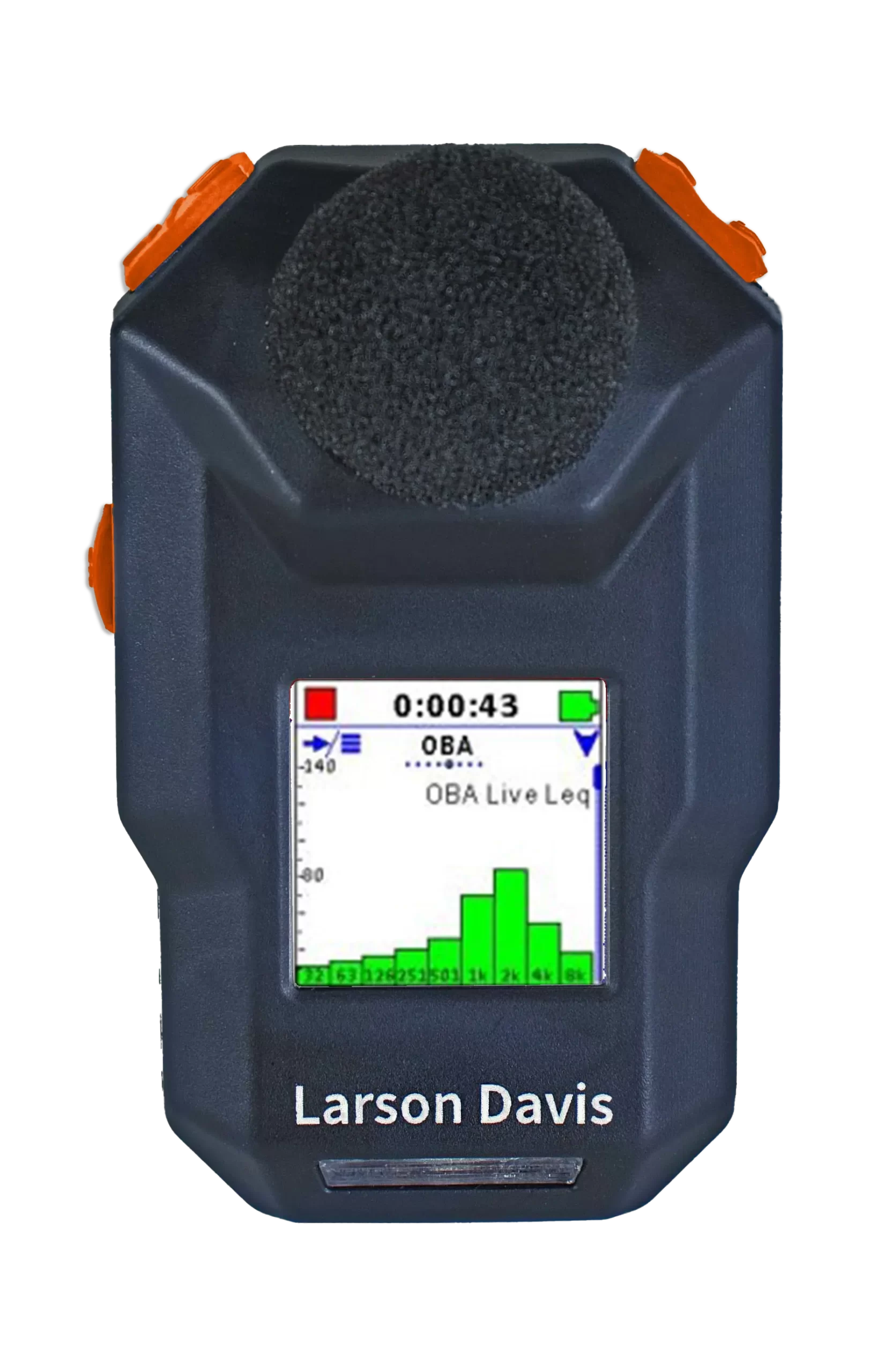

The OBA screen shows a bar chart of live data, which contains the most commonly used octave frequencies.

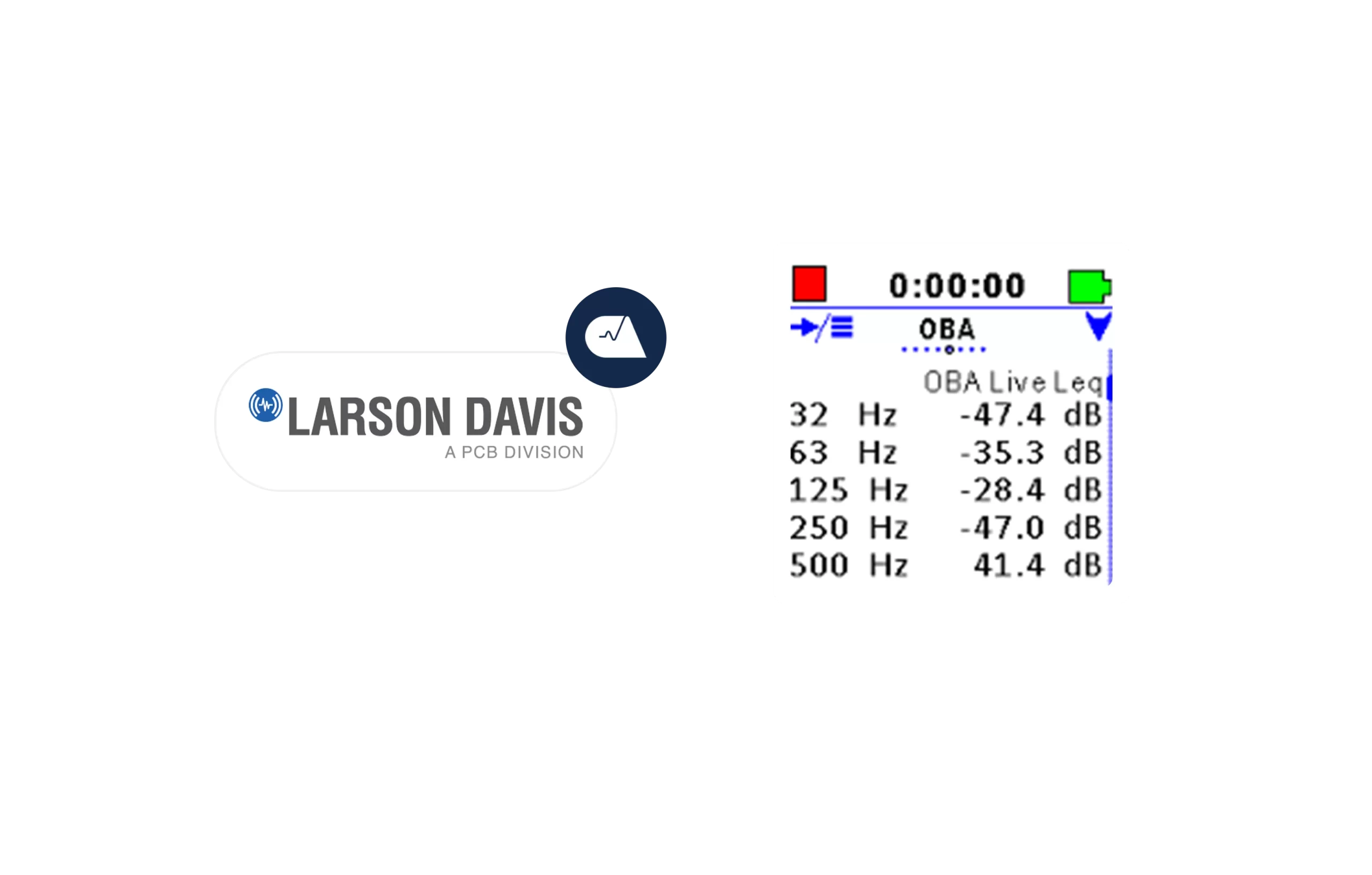

Live Table
Subsequent pages show OBA data in table format. The OBA Screen and associated features display when you purchase and install option 730-OB1.
G4 Utility Software
Automatically connect and download data via G4 LD Utility software without human intervention. Line all your dosimeters up and the software will download the data from each device automatically.
About the Octave Band Analysis Option (730-OB1)
The Octave Band Analysis (OBA) feature on your Spartan 730 allows you to analyze the measured noise exposure in full octaves. Industrial Hygiene professionals sometimes use octave band analysis when measuring personal noise exposure. Octave bands allows you to see the frequency composition of a sound. Among other uses, studying the frequency composition of measured noise can help you determine the most appropriate type of hearing protection for the specific noise frequencies shown.
