Why mounting position matters for weather stations

Accurate wind measurement requires what standards describe as free field conditions. In simple terms, this means the sensor must be positioned where airflow is not influenced by nearby obstructions.

International guidance such as ISO 16622 and WMO meteorological siting recommendations state that wind sensors should be installed well clear of buildings, structures and terrain features that distort airflow. A common rule of thumb is that a sensor should be positioned at a distance of at least 10 times the height of nearby obstructions, or mounted at least twice the height of the nearest structure to reduce interference effects. On construction sites, achieving true free field conditions is extremely challenging.

Why is it so difficult?

Wind does not simply pass around buildings unchanged. When wind strikes a building or structure:

• Its direction is altered
• Turbulence is created
• Accelerated flow zones can form around edges
• Wind shadow areas can develop behind structures

If a wind monitor is installed close to, between, or downwind of buildings or scaffolding, the readings will reflect localised airflow, not true background wind speed and direction. This does not mean the data is useless, but it does mean the data must be understood in context.

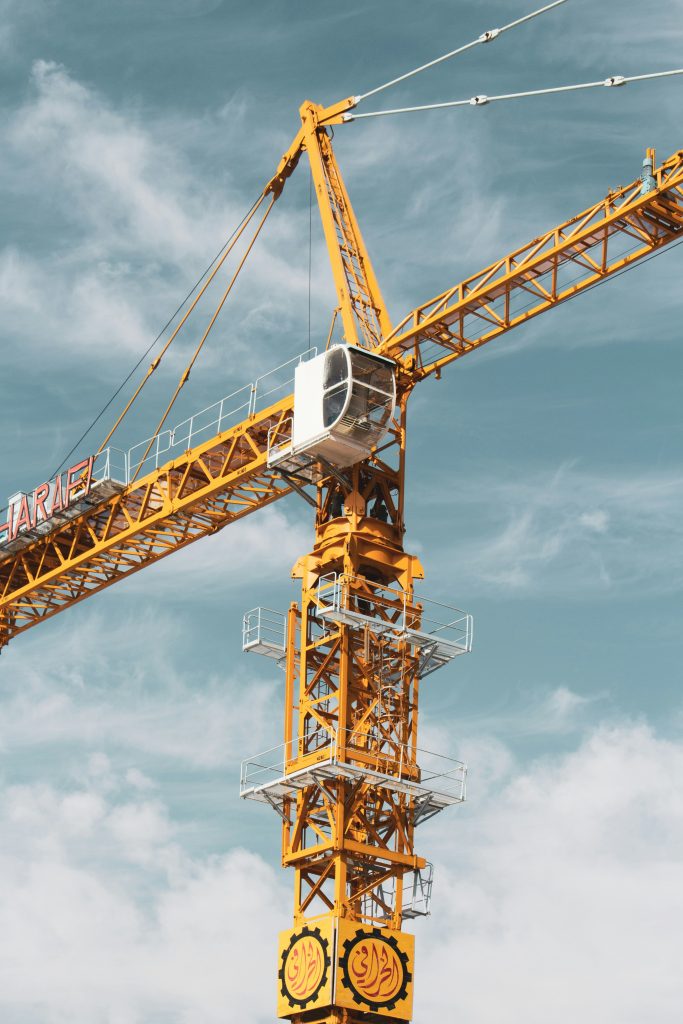

What About Crane Wind Monitoring?

However, even crane mounted sensors can be affected by:

• Nearby high rise structures
• Tower crane masts
• Adjacent buildings under construction
• Complex urban airflow patterns

So while elevated mounting improves accuracy, it does not automatically guarantee true meteorological conditions.

Does This Make Wind Monitoring on Construction Sites Pointless?

No. It simply changes how the data should be interpreted. In environmental monitoring, the purpose is often not to measure absolute meteorological wind speed, but to understand:

• Wind direction trends
• Site influence
• Dust transport patterns
• Relative changes over time

For example, if you measured dust at two locations 100 metres apart along a street, and installed three wind sensors across the site boundary, you would expect to see:

• A consistent wind pattern across sensors
• A directional trend
• Correlation between higher dust readings and downwind locations

If wind sensors show a stable direction from west to east, and dust levels are low on the west side and elevated on the east side, this provides strong evidence of transport across the site. In this context, consistency and correlation are often more important than perfect free field meteorological accuracy.

How Reliable Are Weather Sensors on Construction Sites?

They are very useful, but they should not be relied upon in isolation.

Best practice is to:

• Combine wind data with dust or noise monitoring
• Understand local obstructions
• Record mounting height and proximity to structures
• Maintain consistent siting throughout the project

The key is transparency. If the siting is documented and understood, the data remains defensible.

What Sensor Could Be Used in Optimal Conditions?

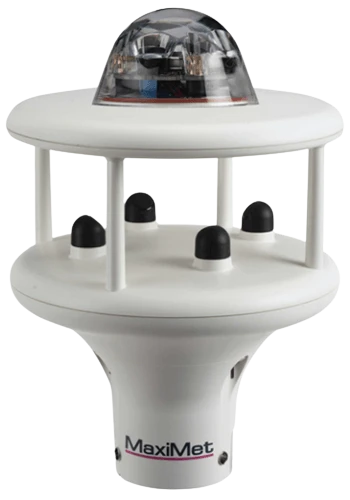

The MAX600 is an example of a compact weather station suitable for construction and environmental applications. It measures:

• Wind speed
• Wind direction
• Temperature
• Relative humidity

Ultrasonic wind sensors, such as those used in the MAX600, operate without moving parts. They transmit ultrasonic pulses between transducers and calculate wind speed and direction based on the time it takes for sound waves to travel between them. This provides:

• Fast response
• Low maintenance
• Improved durability in harsh environments

Installation Best Practice

Once installed, the sensor should be:

• Clear of nearby structures
• Away from scaffolding
• Not mounted directly against scaffold tubes
• Positioned to avoid wind tunnel effects

Scaffolding in particular can significantly distort airflow. Tubes and platforms can create acceleration zones and turbulence, producing readings that reflect structural interference rather than true site wind.

Ideally, the monitor should be mounted:

• Above roof level
• With clear 360° exposure
• Several metres above the roof surface
• Away from roof edges

A dedicated rooftop mast or tripod is often preferable to mounting directly onto scaffold.

Final Thoughts

Perfect meteorological siting is rarely achievable on active construction sites. However, with good planning, sensible positioning and proper data interpretation, weather sensors remain a valuable and defensible tool for environmental and safety monitoring. The key is not perfection. It is understanding the limitations and designing the monitoring strategy accordingly.
